It is mainly used for the absorption of Hcl to, also used for the film-type absorption of SO2 , NH3. P2O5 , H2S etc. It features adjustable output, good film performance of materials, good resistance to corrosion, long service life, low price.

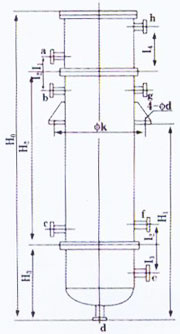

It consists of film-forming components, shell, end socket, heat-transpering pipe bundle.
| Code |
Use |
Code |
Use |
| a |
circulating water inlet |
e |
gas outlet |
b |
cooling water outlet |
f |
cooling water inlet |
| c |
drain outlet |
g |
vent nozzle |
| d |
discharge hole |
h |
gas inlet |
| flange connections standard |
Hg5010-58. Pg10 |
Service conditions
Allowable pressure:
shell pass≤0.3Mpa
tube pass ≤ ±0.1Mpa
Working temp.: 0℃～120℃
-20℃～80℃
Features
1. high absorption rate.
2. resistant to corrosion, no easy scaling.
3. long service life, low price.
Special recommendation
WQXS series tail-gas absorption set |
