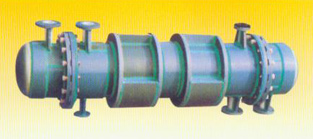

Graphite modified PP tube type heat exchanger

Graphite modified PP tube type heat exchangerIt is all-plastic corrosion-resistant heat exchanger made from modified PP plates, PP tubing and raphite modified PP heat exchange tube. It is widely used for chemical engineering, pesticide, pharmacy, smelting, food and environmental protection.

Features
1. Excellent resistance to corrosion.
2. No scaling, stable heat transpering property.
3. Non-toxic, and can be used for food and pharmaceutical industries.
4. Low price, light, and long service life

Service conditions
Working pressure:
　　　　　 shell pass≤ -0.1~0.2Mpa
　　　　 　 tube pass ≤ -0.1~0.3Mpa
Working temp.: 0℃～120℃
　　　　　 -20℃～80℃

Code Use
a shell pass outlet

b

 shell pass inlet
c tube pass inlet
d tube pass outlet
e drain outlet
f vent nozzle
flange connections standard Hg5010-58. Pg10
Graphite modified PP tube type heat exchanger
Heat exchange area m2 Nominal diameter Shell length Qty. of heat exchange tube Installation dimension (vertical) Installation dimension (horizontal) tube pass inlet tube pass outlet shell pass inlet shell pass outlet vent nozzledrain outlet
Dg L piece L0 H ΦA L0 K a b c d e.f
5 300 1600 61 2250 1200 450 2300 1000 50 50 50 50 50
10 400 1500 127 2200 1200 550 2250 1000 50 50 50 50 50
15 400 2300 127 3000 1850 550 3050 1500 50 50 50 50 50
20 500 1900 211 2650 1500 660 2750 1300 65 65 65 65 50
25 500 2300 211 3050 1700 660 3150 1550 65 65 65 65 50
30 600 1900 313 2700 1500 760 2850 1300 80 80 80 80 65
35 600 2200 313 3000 1700 760 3150 1500 80 80 80 80 65
40 600 2500 313 3300 1900 760 3500 1750 80 80 80 80 65
50 700 2200 433 3100 1750 880 3300 1650 100 100 100 100 65
60 700 2700 433 3600 2050 880 3800 1900 100 100 100 100 65
70 700 3100 433 4000 2300 880 4200 2100 100 100 100 100 65
85 800 2800 583 3700 2100 980 4000 2000 125 125 125 125 80
100 800 3300 583 4200 2400 980 4500 2250 125 125 125 125 80
120 900 3100 745 4100 2350 1100 4500 2250 150 150 150 150 80
150 900 3900 745 4900 2800 1100 5300 2650 150 150 150 150 80
