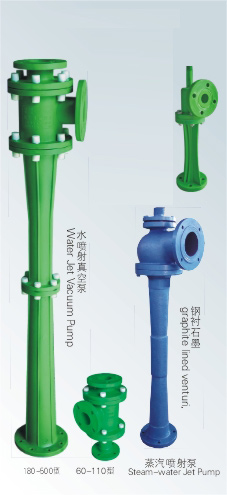

RPP water-jet pump, steam-jet pump, air-jet pump
◆ Brief Intro.
Water-jet pump, steam-jet pump are our patented products. Steam-jet pump Venturi tube is steel-lined graphite.
◆ Features
Applicable corrosive gas temp.: 150°C below, can be 与Steam-jet pump connected in series with steam-jet pump to achieve higher vacuum degree.
◆ Advantages
Strong anti-corrosion property, high mechanical strength, smooth surface, simple structure, small volume, long service lfie, high vacuum degree.
◆ Use
Widely used for chemical, pharmacy, textiles, food, brewage ane environmental protection industries.

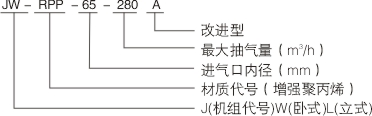

◆ Demonstration of type
◆ Model No. & Performance Parameters
Model NO. |
Final VacuumMpa |
Assured vacuum |
Sucking rate max. m3/h |
Supportive pump Model NO. & power KW |
Dimension of horizontal machine unit
L×W×H |
|
Mpa |
mmHg |
RPP-25-20 |
0.0985 |
0.098 |
735 |
20 |
40FP(D)-18(1.5) |
1100×600×800mm |
|
RPP-32-40 |
0.0985 |
0.098 |
735 |
40 |
50FP(D)-22(2.2) |
1100×700×800mm |
RPP-40-60 |
0.098 |
0.097 |
728 |
60 |
50FP(D)-25(3) |
1550×1000×1150mm |
RPP-54-90 |
0.098 |
0.097 |
728 |
90 |
65FP(D)-28(4) |
1750×1000×1200mm |
RPP-54-110 |
0.0985 |
0.0975 |
732 |
110 |
80FP(D)-30(5.5) |
1750×1000×1200mm |
RPP-54-180 |
0.0993 |
0.098 |
735 |
180 |
80FP(D)-30(5.5) |
1850×1000×1250mm |
RPP-54-220 |
0.0996 |
0.0984 |
738 |
220 |
100FP(D)-32(15) |
1850×1000×1300mm |
RPP-65-280 |
0.0993 |
0.098 |
735 |
280 |
80FP(D)-32(7.5) |
1950×1000×1300mm |
RPP-65-280A |
0.0996 |
0.099 |
740 |
280 |
80FP(D)-32(7.5) |
1950×1000×1350mm |
RPP-65-360 |
0.0995 |
0.098 |
735 |
360 |
100FP(D)-32(11-15) |
2450×1200×1300mm |
RPP-80-360 |
0.0995 |
0.098 |
740 |
360 |
100FP(D)-32(11-15) |
2450×1200×1300mm |
RPP-80-360A |
0.0998 |
0.099 |
740 |
360 |
100FP(D)-32(11-15) |
2450×1200×1350mm |
RPP-80-500 |
0.0995 |
0.098 |
735 |
500 |
100FP(D)-32(11-15) |
2500×1200×1500mm |
RPP-80-500A |
0.0996 |
0.099 |
740 |
500 |
100FP(D)-32(15) |
2500×1200×1500mm |
Steam-jet pump |
0.1 |
0.0996 |
748 |
|
|
