RPP water-jet vacuum set

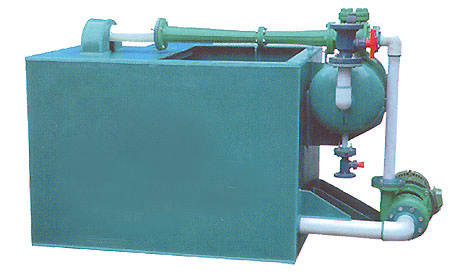

RPP all-plastic water-jet vacuum set
| |
| 1. check valve |
2. vacuum pump |
| 3. vacuum meter |
4. ball valve |
| 5, buffer tank |
6, water tank |
| 7, blowoff valve |
8, chassis |
| 9, centrifugal pump |
|
|
◆ RPP-54/65/80 series water-jet pump parameter performance curve
|
| |
RPP steam-water series connection water-jet vacuum set
◆ Brief Intro.
It consists of corrosion-resistant pump, jet pump, buffer tank, cistern,check valve, ball valve, pipe fitting and corrosion-resistant steam-jet pump etc.
◆ Features
High vacuum degree, easy installation, resistant to corrosion, non-toxic, larege air-bleed volume, reasonable structure, reliable operation, economical.
◆ Use
It is widely used for chemical engineering, pharamcy, textiles, food, brewage, environmental protection etc.
◆ Product configuration
Centrifugal pump: FRPP, PVDF, fluorine alloy pump, of fluoride lined ;
Steam-jet pump : Venturi tube lined with graphite, pump body: cast iron lined with polytrifluorochloroethylen (F3)
Nozzle: stainless steel, brass, silicon carbide;
Grade of steam pump |
Working steam pressure (表)Mpa |
Gas consumption
kg/h |
Absolute pressure
mmHg |
Sucking rate max.
m3/h |
Grade 1 |
Grade 2 |
Grade 1 |
≥0.35 |
|
38 |
1.5-10 |
according to Sucking rate max. |
Grade 2 |
≥0.35 |
≥0.25 |
60 |
0.5-5 |
|
